Produk

Rumah / Produk / MENGINTIP tabung /

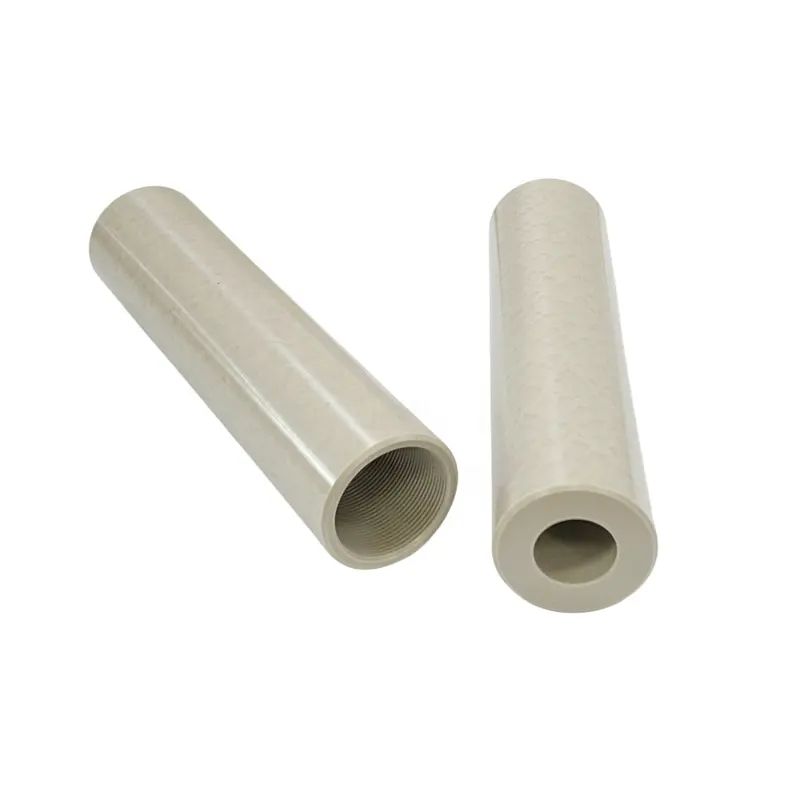

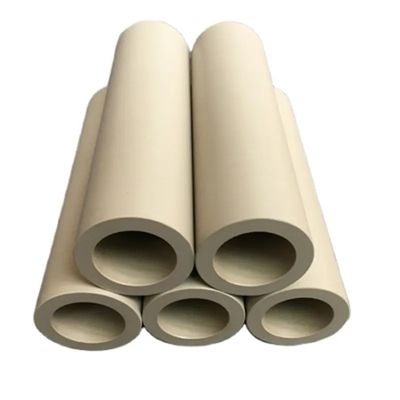

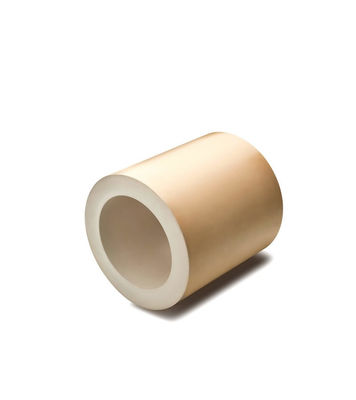

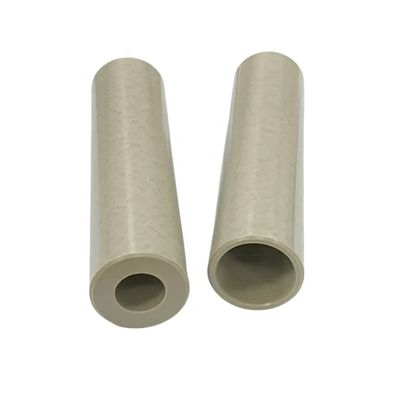

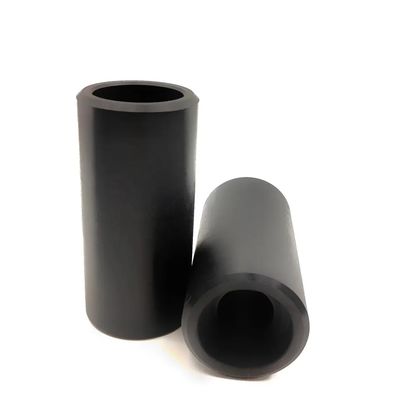

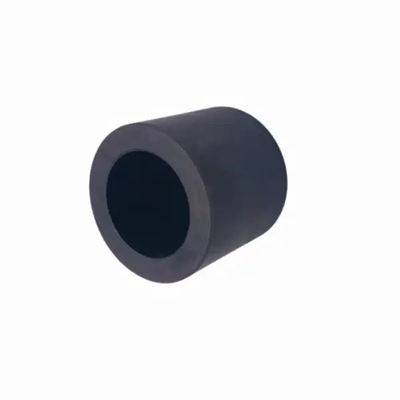

Custom Size 100% Virgin PEEK Resin Tube For Industrial Applications

Custom Size 100% Virgin PEEK Resin Tube For Industrial Applications

Nama Merek:	PRES
Nomor Model:	MENGINTIP 1000
Jumlah Pesanan Minimum:	1kg
harga:	50-65
Ketentuan Pembayaran:	D/A, D/P, T/T, Western Union, MoneyGram
Kemampuan Penyediaan:	250Tone per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ROHS REACH

Bahan:

MENGINTIP Resin

Warna:

Natural,Black,Brown abu-abu / hitam,Natrual / Hitam / Khaki

Kepadatan:

1.31

Nama produk:

Lembaran plastik pelat peek1000 plastik pelumasan diri presisi tinggi

Fitur:

Ketahanan tinggi terhadap keausan, ketahanan abrasi, tahan lama, suhu kerja 260°C

Aplikasi:

Industri manufaktur mesin,Industri otomotif,barang-barang manufaktur,Teknik

Sampel:

Untuk dinegosiasikan, sampel gratis

Bentuk:

Tabung

Pengemasan:

Dalam dalam kantong poli, kasus kayu

Kemasan rincian:

Dalam dalam kantong poli, kasus kayu

Menyediakan kemampuan:

250Tone per bulan

Menyoroti:

100% Virgin PEEK Resin Tube

Custom Size PEEK Resin Tube

PEEK Resin Tube For Industrial

Deskripsi Produk

custom size 100% virgin PEEK resin tube

PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250° C) without permanent property
degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments.

PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.

PEEK Material Characteristics:
1.Mechanical properties (variable stress and excellent fatigue resistance)

2.High temperature resistance (long-term use at 260℃)
3.Self-lubricity (low coefficient of friction and wear resistance)

4.Chemical resistance (corrosion resistance)

5.Flame retardant(can reach the highest flame retardant standard)

6.Peeling resistance (can be made into thin coated or electromagnetic wire)
7.Fatigue resistance (resin material has the best fatigue resistance)

8.Hydrolysis resistance (excellent in high temperature and high pressure water)

9.Radiation resistance (up to 1100Mr AD)

PEEK Parameters
NO.	Item no.	Unit	PEEK-1000	PEEK-CA30	PEEK-GF30
1	Density	g/cm3	1.31	1.41	1.51
2	Water absorption (23℃ in air)	%	0.2	0.14	0.14
3	Tensile strength	MPa	110	130	90
4	Tensile strain at break	%	20	5	5
5	Compressive stress(at 2% nominal strain)	MPa	57	97	81
6	Charov impact strength(unnotched)	KJ/m2	No break	35	35
7	Charov impact strength(notched)	KJ/m2	3.5	4	4
8	Tensile modulus of elasticity	MPa	4400	7700	6300
9	Ball indentation hardness	N/mm2	230	325	270
10	Rockwell hardness	--	M105	M102	M99

PEEK SHEET&RODS Standard SIZE
Item	Thick/Dia(mm)	Width/Length(mm)	Density (g/cm3)	Color
PEEK resine sheet	6-120	620X1240	1.31	Natural, Black
PEEK resine rod	6-100	1000	1.31	Natural, Black
PEEK+GF Sheet	6-100	620x1240	1.51	Natural, Black
PEEK+GF Rod	10-50	1000	1.51	Natural, Black

Custom Size 100% Virgin PEEK Resin Tube For Industrial Applications 0
